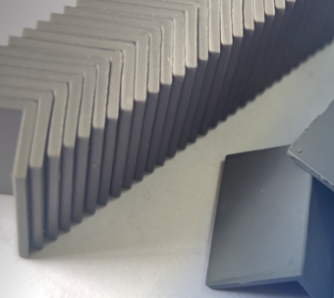

Thin RF Absorber SW6000-series
Product Highlights of Thin RF Absorber
- Low Density
- High Permeability
- Flexible
- Wide Frequency Range
- Optional PSA
Product application of Thin RF Absorber
- Padding around the antenna provides isolation or
reduces side lobe interference; - Die cutting parts to be applied to component(s) or unit(s) in
microwave cavity to reduce electromagnetic interference; - To make components for radomes and shielded test room.
The SW6000-series is a thin, flexible dielectric absorbing material. It has a wide RF frequency coverage and good insertion loss in the 50M-110GHz range. This material is specially designed for microwave applications, including high-speed optical transceivers, ADAS radar, 5G network equipment, etc.
The SW6090 material has excellent environmental adaptability to harsh environmental conditions: wide operating temperature range, oil resistance and UL-94 V0 flame rating. The magnetic filler makes the product have excellent wave absorbing performance even when the incident angle is greater than 65 degrees.
Technical Overview & Compliance
The Thin RF Absorber is designed for modern electronics where internal clearance is measured in microns. These ultra-thin sheets—often as slim as 0.05mm—utilize a high-permeability magnetic filler dispersed in a specialized polymer binder. Despite their low profile, they effectively suppress near-field EMI and improve signal-to-noise ratios by absorbing parasitic energy that would otherwise cause “de-sense” in antennas. Their flexibility allows them to be wrapped around cables or applied to the interior of slim housings.
To ensure these materials provide consistent electrical performance in high-density packaging, they are tested according to the IEC 62333 series for Noise Suppression Sheets for Digital Devices and Equipment. This international standard governs the measurement of magnetic permeability and decoupling effectiveness, ensuring that every Thin RF Absorber meets the precision requirements of the consumer electronics and telecommunications industries.
SPECIFICATIONS TABLE
| Part Numbers | SW6090 | SW6090K | Test Methods | |
|---|---|---|---|---|
| Parameters | Units of Measure | |||
| Color | – | Black | Black | Visual |
| Substrate | – | Silica Gel | Silica Gel | – |
| Dielectric Constant E’ (77GHz) | – | 27.78 | 30 | SJ20512-1995 |
| Dielectric Constant E” (77GHz) | – | 11.58 | 12.6 | SJ20512-1995 |
| Insertion Loss -S11 (77GHz) | dB | -3.08(0.38mm) | -8.2(1mm) | GBDG-70/90 (Free Space) |
| Insertion Loss -S21 (77GHz) | dB | -13.88(0.38mm) | -22.5(1mm) | GBDG-70/90 (Free Space) |
| Hardness | Shore A | 70 | 70 | ASTMD2240 |
| Flammability Rating | – | V-0 | V-0 | UL-94 |
| Operating Temperature | ℃ | -70~+200 | -70~+200 | ASTMD1329 |
| Thickness | mm | 0.5~3.2 | 0.5~3.2 |
Performance Data
