Hybrid Thermal & RF Absorber SFA-series | Gel
Product Highlights of Hybrid Thermal & RF Absorber Gel
- Thermal conductivity 3.5~6.0 W/m·K
- Thermal/EMI hybrid function
- Especially suitable for 25 GHz optical modules
- High reliability and weather resistance
- Fully cured, never dry

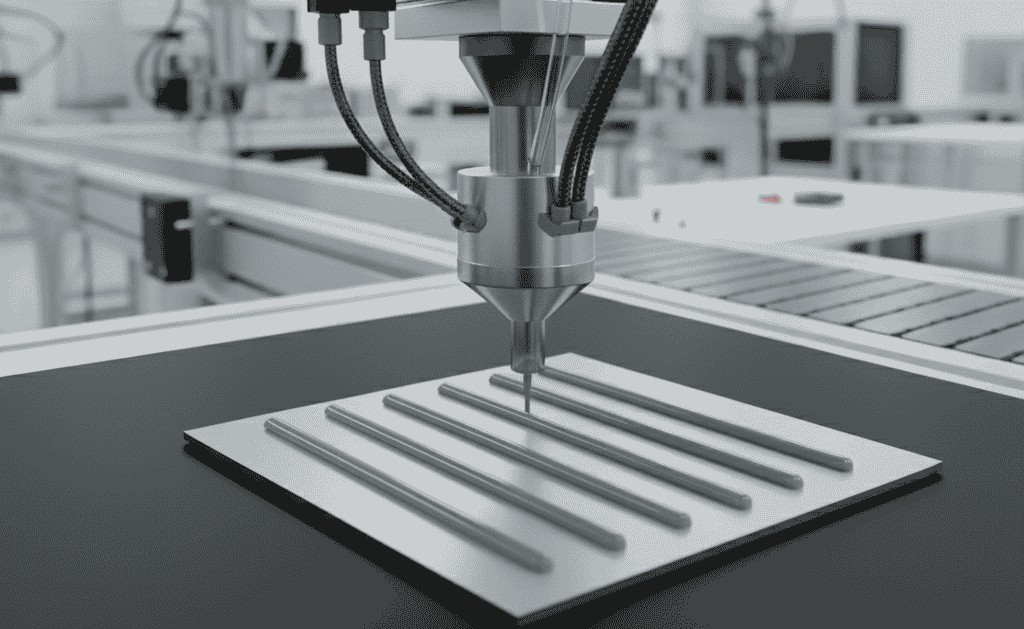

- Easy to dispense, good plasticity
Application Examples
- Consumer electronics, telecommunication device
- Tablet, multimedia device
- Desktops, laptops and servers
- Optical fiber telecommunication device
- Consumer electronics
- Defense electronic device
SFA series of hybrid gel offers exceptional thermal performance, microwave absorption, low compressibility, and high reliability. Designed for versatile applications, it provides excellent gap adaptability, making it highly effective in ensuring full contact between mating parts, which enhances heat transfer efficiency.
Unlike thermal grease, the SFA series gel has no settling or flow issues, making it an ideal solution for dispensing, screen printing, or squeegee coating. Its unique formulation ensures consistent performance without the mess or complications often associated with traditional thermal greases.
Our Hybrid Thermal & RF Absorber solutions offer the dual benefit of high-performance heat dissipation and superior electromagnetic interference shielding. To ensure these multi-functional materials meet global electronics standards, we verify our shielding effectiveness using benchmarks set by the IEEE 299 standard. This guarantees that every Hybrid Thermal & RF Absorber provides reliable thermal management while effectively eliminating unwanted high-frequency noise in sensitive aerospace and telecommunications hardware.
SPECIFICATIONS TABLE
| Part Numbers | |||
|---|---|---|---|
| Parameters | Units of Measure | SFA3500 | SFA6000 |
| Colour | – | Charcoal | Grey |
| Curing Schedule @30cc syringe 0.1″ needle nozzle, 90Psi | g/min | 20 | 25 |
| Thermal Conductivity | W/m·K | 3.5 | 6.0 |
| Thermal Resistance @20psi | oC·in²/W | 0.07 | 0.032 |
| oC·cm²/W | 0.45 | 0.206 | |
| Minimum Thickness | mm | 0.08 | 0.12 |
| Flammability Rating | UL94 | V-0 | V-0 |
| Volume Resistivity | Ω·cm | ≥1.0×1010 | ≥1.0×10⁹ |
| Density | g/cm³ | 4.35 | 3.9 |
| TML(CVCM) | % | ≤0.12(0.01) | ≤0.12(0.01) |
| Low Volatile Content (D4~D20) | ppm | <20 | <20 |
| CTE(Coefficient of Thermal Expansion) | ppm/oC | 135 | 135 |
| Operating Temperature | oC | -60~+200 | -60~+150 |
| RoHS | Yes | Yes |
