Product Highlights

• shielding effectiveness up to 90 dB
• Low compression
• Good cost performance ratio
• Simple and diverse installation methods
• Products comply with ROHS, Reach, UL94-V0 and other standards

Applications of OEF Conductive Fabric Over Foam Gaskets:

• General Equipment: Provides effective EMI/RF shielding for a wide range of electronic devices.
• Household Appliances: Ensures protection against electromagnetic interference in home electronics and appliances.
• Electrostatic Discharge (ESD) Applications: Helps prevent damage to sensitive components by shielding against electrostatic discharge.
• Industrial Equipment, Laptops, and Tablets: Offers reliable EMI shielding for industrial machinery and portable electronics, enhancing their performance and reliability.

Descriptions:

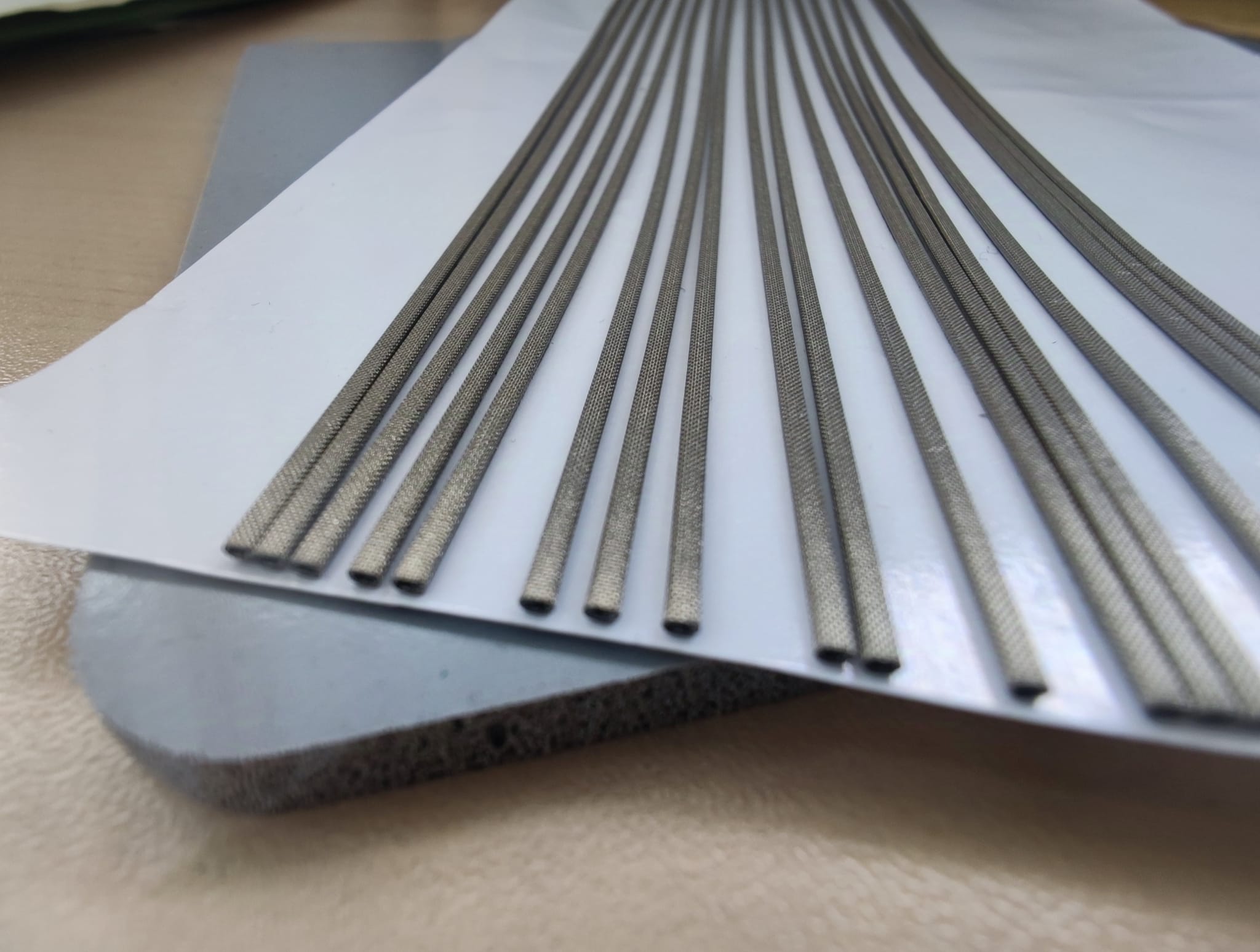

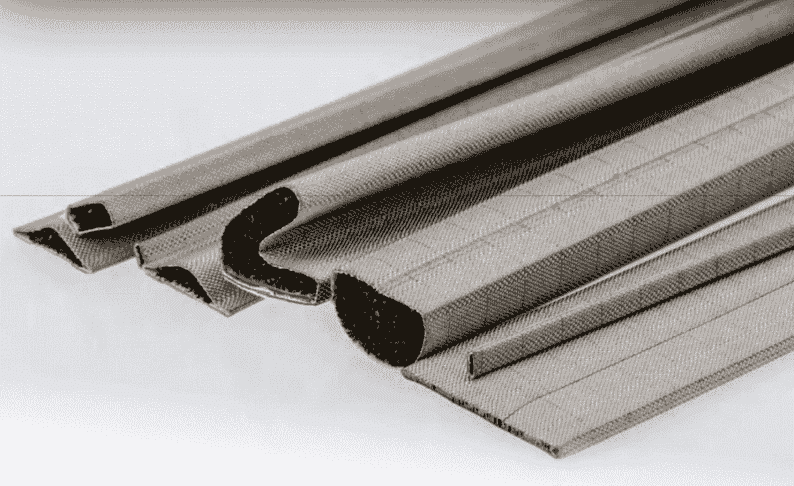

OEF Conductive Fabric Over Foam is an EMI shielding material that combines a highly elastic sponge core with conductive fabric or metallic foil. This material offers exceptional characteristics, including low compression force, high compression ratio, excellent shielding performance, and flexible installation methods. It provides a lightweight, flexible solution for shielding EMI/RF interference in equipment.

The OEF series is also easily die-cut, enabling cost-effective custom shielding structures tailored for various I/O ports. Our engineers can assist customers in selecting the appropriate materials and customizing the die-cut design to meet specific application requirements, ensuring the best solution for diverse environmental conditions.

Item	Ni/Cu Polyester Taffeta	Ni/Cu Polyester Ripstop	Ni/Cu Polyester Mesh	Ni/Cu Polyester Nonwoven	Graphite Film	Nickel Plated PI	Tin Plated PI	Anti-Oxidant Al Foil	Test Method
Color	Grey/Black		Grey	Grey	Golden	Silver		Silver	Visual
Substrate	Fabric		Fabric Mesh	Non-Woven	Graphite Film	PI Film		PI Film	NA
Surface Resistivity (Ω/sq)	<0.07		<0.07	<0.07	NA	<0.02		<0.05	ASTMF390
Shielding Effectiveness (dB)	70		40	80	NA	90		80	MIL-G-83528C
Flammability	HB-V0		HB	HB	V0	V0		V0	UL-94
Operating Temperature (°C)	-40~+120		-40~+120	-40~+120	-40~+200	-40~+250		-40~+150	Thermometer
Tensile Strength (Ib/in)	70~80		40~50	80~100	50~60	50~60		80~100	ASTM5035
Air Flow (ft³/min/ft²)	60		NA	500	500	650		650	–
Advantages	Flame Retardant, High Shear Resistant		Low Cost	Flame Retardant High Shear Resistant	Heat Dissipation	High Temperature,  Solderable		High Temperature Strong Structure	–
Suggested Application	I/O or Complex Shape Profiles		I/O	I/O or Complex S hape Profiles	Special Application	SMD		Special Application	–
