Product Highlights

• High thermal conductivity, better than natural graphite
• Excellent temperature resistance, no volatile matter, no pollution to products
• Product shape can be customized according to customer drawings

Applications

• Smartphone
• Tablet PC
• Vapors, radiators
• Electromagnetic shielding

Storage Condition

• Sealed storage
• Storage temperature is 20~35°C, moisture-proof, avoid direct sunlight
• (After adhesive layer applied) the shelf life is 6 months

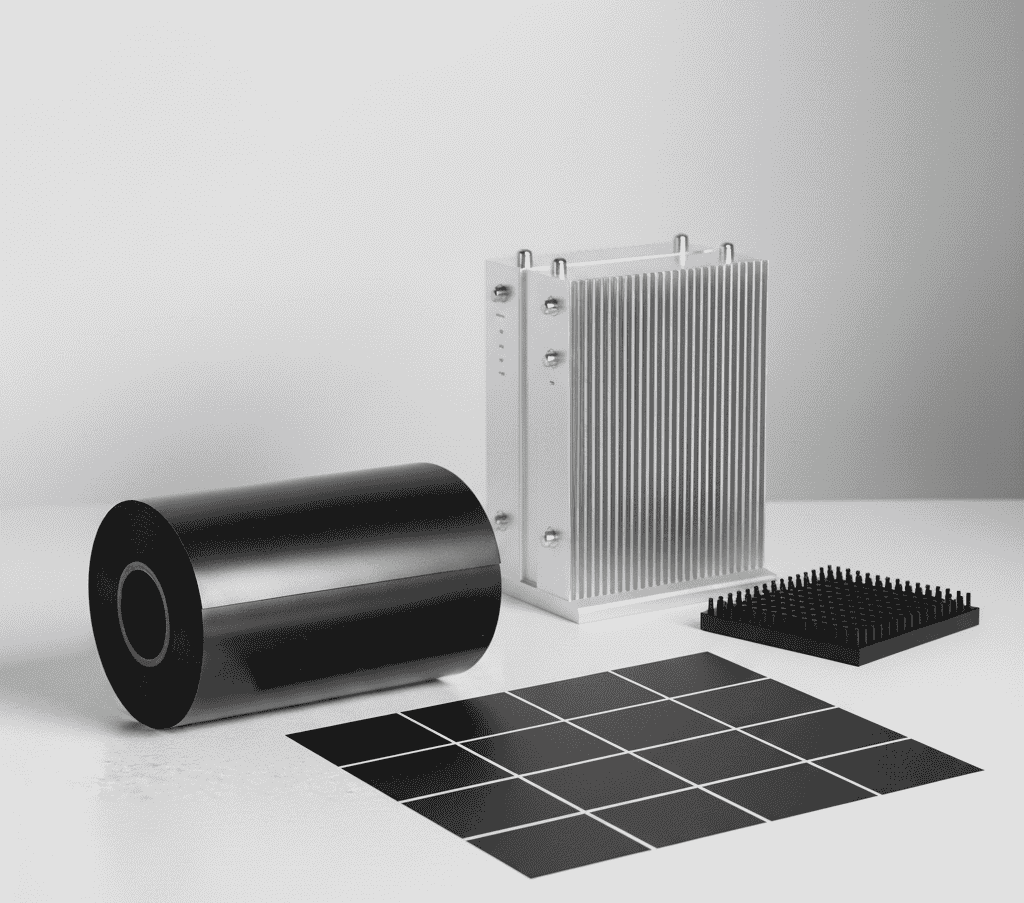

GBT-ViaTHERM GRF is a synthetic graphite material known for its ultra-high thermal conductivity in the planar direction. The material features a regular carbon hexagonal layered structure in the horizontal direction, enabling thermal conductivity of up to 1,500 W/m-K.

This exceptional performance makes it ideal for high-efficiency heat dissipation applications. Additionally, the material can be equipped with an adhesive on one side, allowing for easy handling and installation.

Item	GRF150S					GRF100S					Test Method
Physical Property
Colour	Black					Black					Visual
Material	Synthetic Graphite					Synthetic Graphite					–
Operating Temperature (°C)	-55~+400					-55~+400					–
Hardness	90 Shore A					90 ShoreA					ASTM D2240
Thickness (mm)	0.012	0.017	0.025	0.04	0.05	0.085	0.09	0.1	0.11	0.12	ASTM D374
Raw Material Width (mm)	100	130	140	140	140	100	130	140	140	140	–
Density (g/cm³)	2.17	2.13	2.1	1.8	1.7	2.17	2.13	2.1	1.8	1.7	ASTM D792
Tensile Strength (PSI)	900	900	900	900	900	900	900	900	900	900	ASTM D412
Fold Durability (R5/180°)	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	–
Electrical Performance
Volume Resistivity (ohm-cm)	11×10-3					11×10-3					ASTM D257
Conductivity (S/cm)	19000					20000					–
Breakdown Voltage	>4000AC					>4000AC					ASTM D149
Thermal Performance
X-Y Axis Thermal Conductivity (W/m·K)	1800	1700	1500	1300	1100	1800	1700	1500	1300	1100	Hot Disk
Z Axis Thermal Conductivity (W/m·K)	15					10					ASTM D5470
Specific Heat Capacity (J/(Kg·K))	710					710					ASTM D2766
RoHS	Yes					Yes					–
